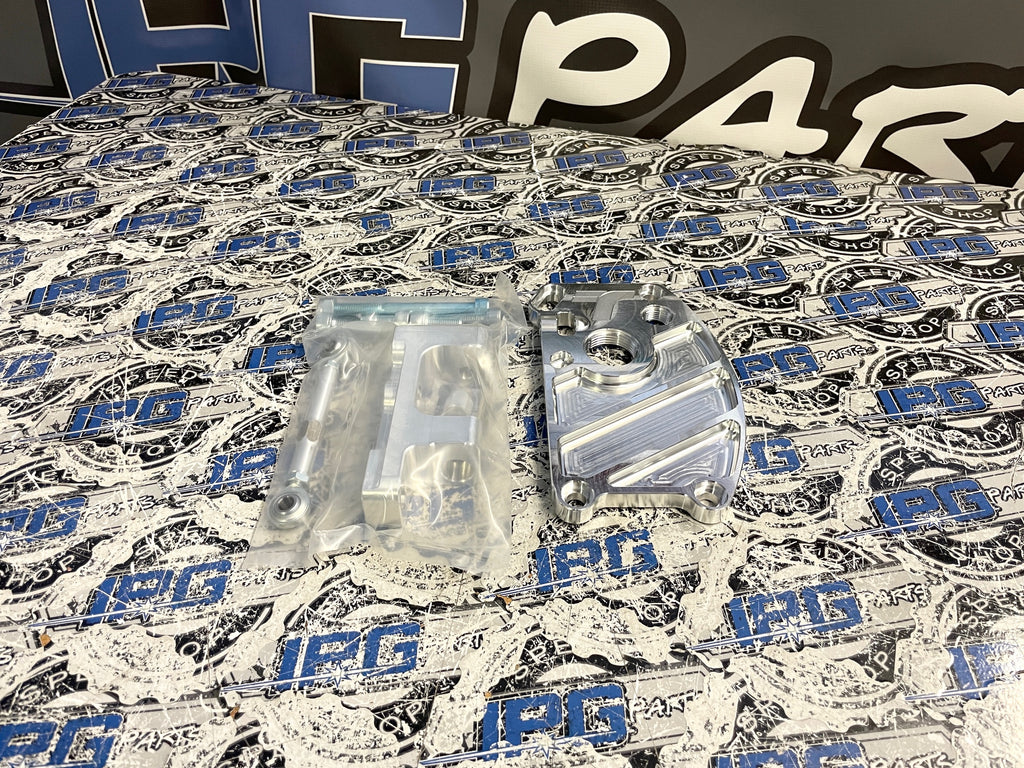

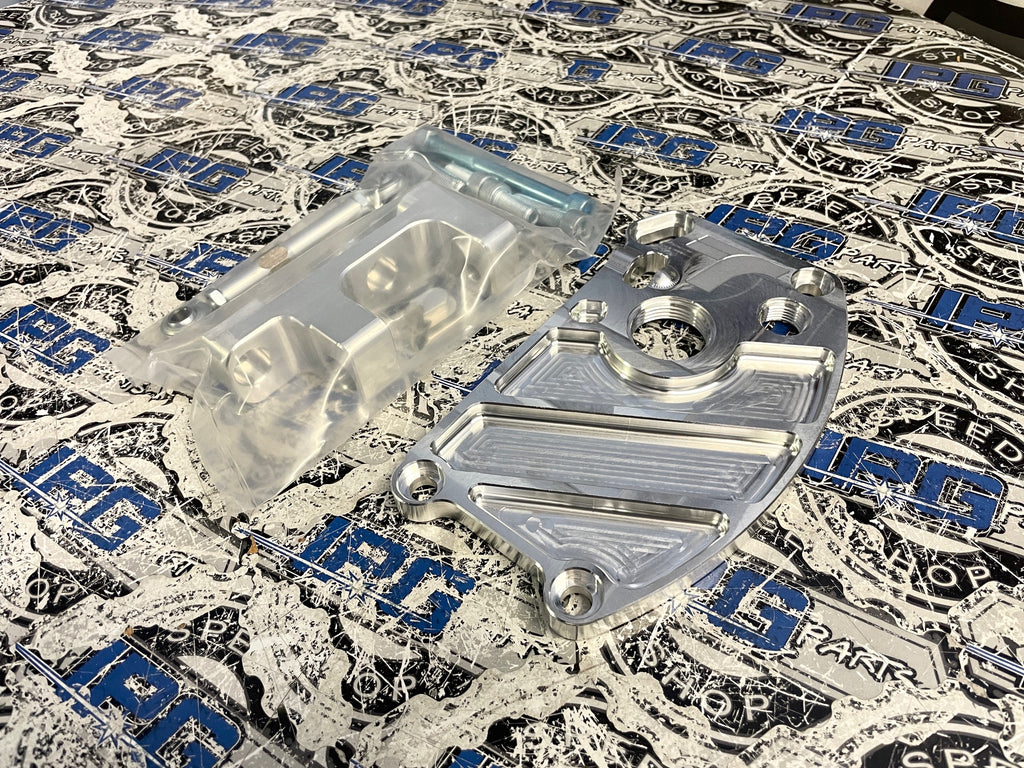

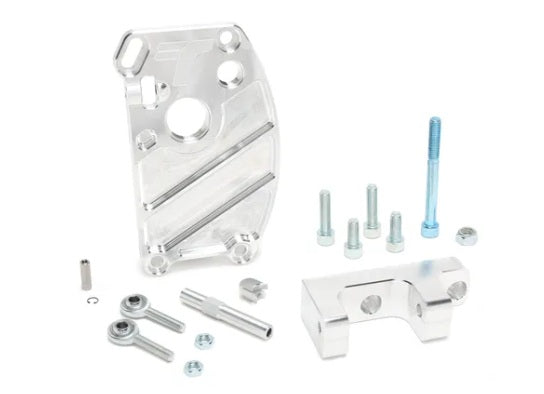

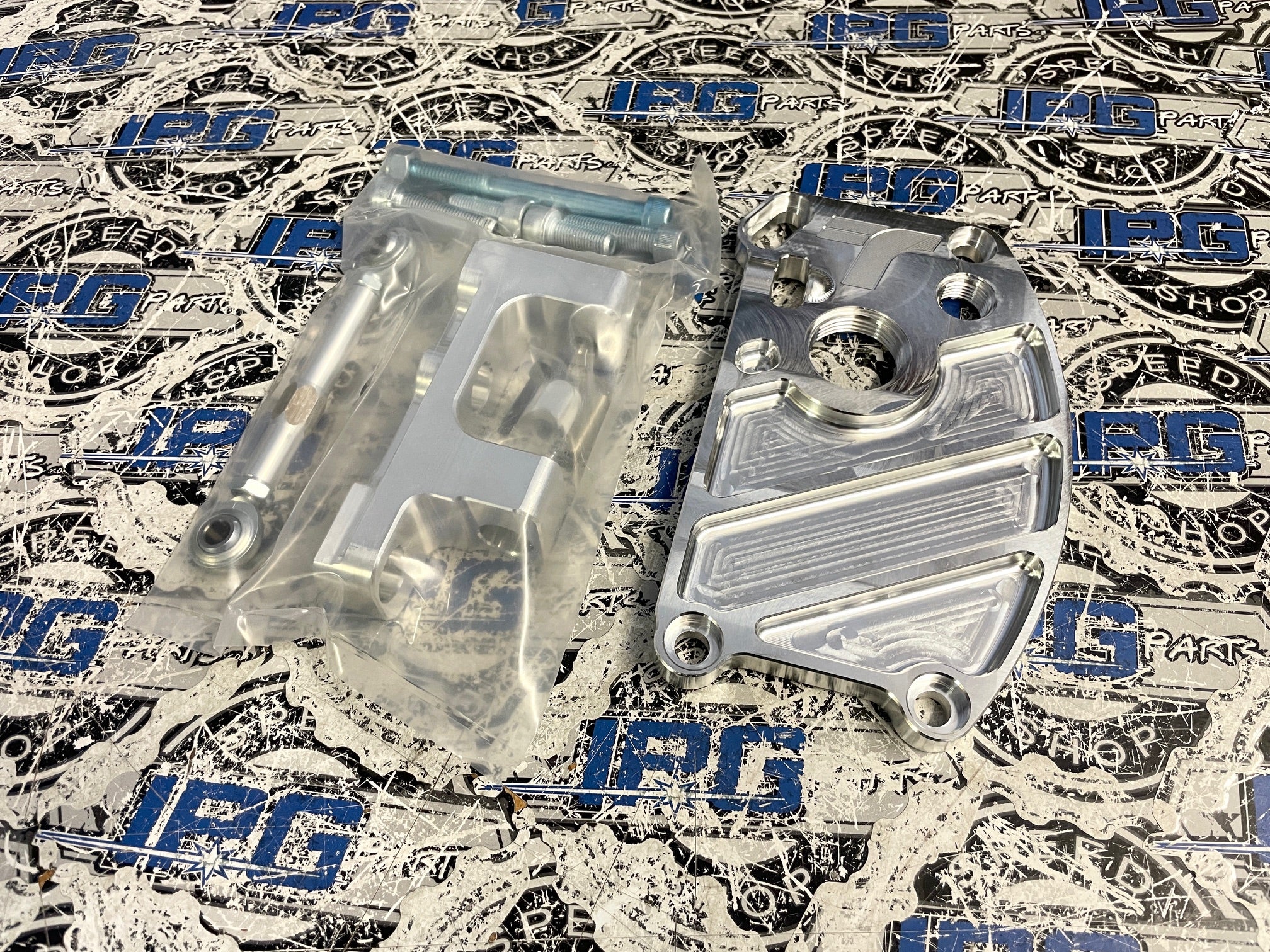

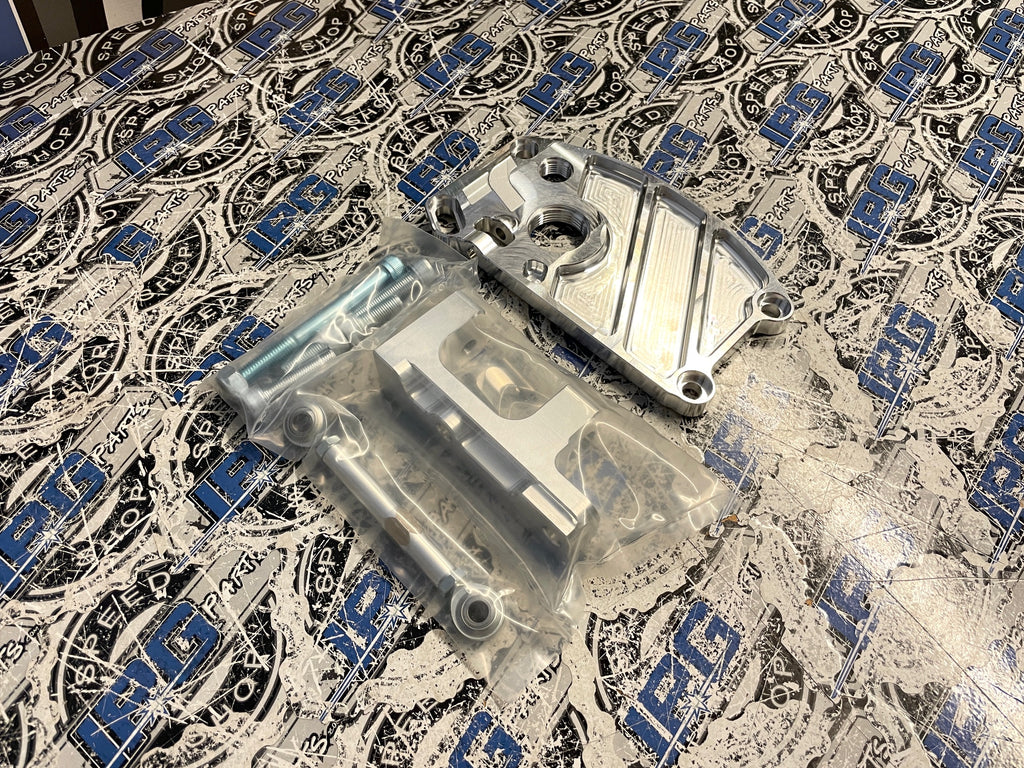

TracTuff K20 / K24 -16 Water Pump Housing Delete w/ Alternator Bracket

TracTuff K Series Water Pump Delete Plate for:

K20, K20a, K20a2, K20z1, K20z3 and K24, K24a, K24a2, K24a4 Engines

In January of 2023 TracTuff made three changes / improvements to highlight:

1. Redesigned the alternator bracket so that my product would play nice with the Dailey Engineering Dry Sump kit. From what I am told... this is the only kit with an alternator that works with their beautiful design.
2. As a result of moving the alternator upwards, the delete plate tensioner window has been moved to eliminate tensioner rod misalignment.
3. While redesigning the tensioner window I decided to ditch the M8 tensioner bolt in favor for a precision ground stainless pin. The stainless pin fits the rod end with zero slop and leave no room for threads to get bashed... introducing slop. The stainless steel pin is retained by a 5/16" circlip.

All the things I've said about this product over the years still stand true; the uncoupling of the OEM K20A, K20Z, K24A mechanical water pump from the crankshaft offer the following benefits...

• Reduction in parasitic drag.
• Free horsepower and torque.
• Elimination of pump cavitation associated with water pump RPM.
• Better control over cooling systems temperatures through the use of programing.
• Manually override pump and fan(s) to cool the motor while the engine is off.
• Space you can free up by eliminating the OEM items.

We can supply hardware / installation kits as well as Electric Water Pumps to assist you in building out a complete kit. Please inquire.
